It is possible to select a design scheme in order to quickly achieve optically appealing results. Diverse pre-defined schemes are available in the list. This option is the project-global pre-setting and is available in the objects via the "Project Design Scheme" item.
Under the "User Defined" option there is a "…" button available for users to specify a design scheme. This scheme is then provided in the objects via the "User Defined" option.
Property | Description | Value | Description |
---|---|---|---|
Color Foreground | Ten scheme colors for the foreground: available in objects as LL.Scheme.Color0…9 The color can be defined freely using a color dialog, a selection list with predefined colors or using a formula or function ("Formula" option at the end of the list). Use the RGB() or HSL() function for a function. |
| Color dialog Selection of predefined colors and formula wizard |
Color Background | Four scheme colors for the background: can also be selected in the objects as LL.Scheme.BackgroundColor0…3. |
| Color dialog Selection of predefined colors and formula wizard |
Set To | If you select a design scheme here, the fore- and background colors are reset to the colors of the selected design scheme. | List | Scheme |

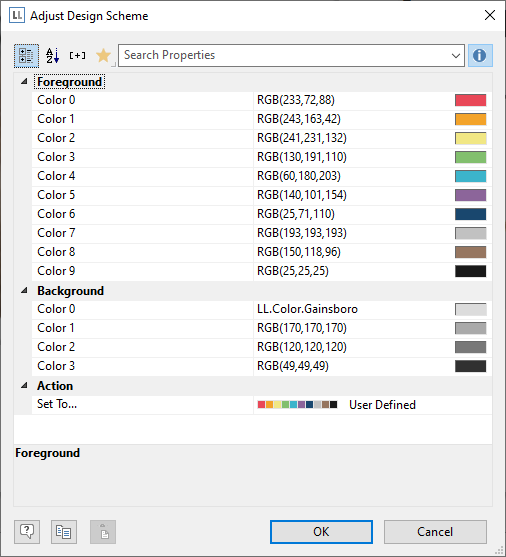

Figure 13.4: Adjust Design Scheme
