Report Parameters
The report parameters allow for the parameterization of reports; i.e. the result of the output can be influenced. This allows e.g. a date range to be selected or only certain invoice numbers to be printed.
This functionality can also be used to create drill-down reports. For more information, see chapter Drilldown Reports (Increase Detail Level)
Parameters can be defined via Project > Report Parameters.
Tip: The availability of this chart depends on the application. |
Example: Filtering a report according to category and date in the preview.
To do so, proceed as follows:
1. What we have is product statistics spanning multiple product groups and years:

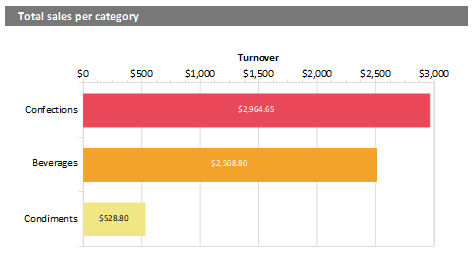

Figure 9.9: Sample-Report "Different chart types"
2. Now add the parameters at Project > Report Parameters. Give distinctive names, e.g. "Categories". The "@" character is automatically appended to the front of the name. For "Available Values", select "From Data Source" and the data source "Categories" with the field "CategoryID".
3. For the remaining report parameters "StartDate" and "EndDate", select "Manual Input" for "Available Values". Choose "Date" for "Type" and "Control Type" and give them a distinctive name, e.g. "StartDate" and "EndDate".

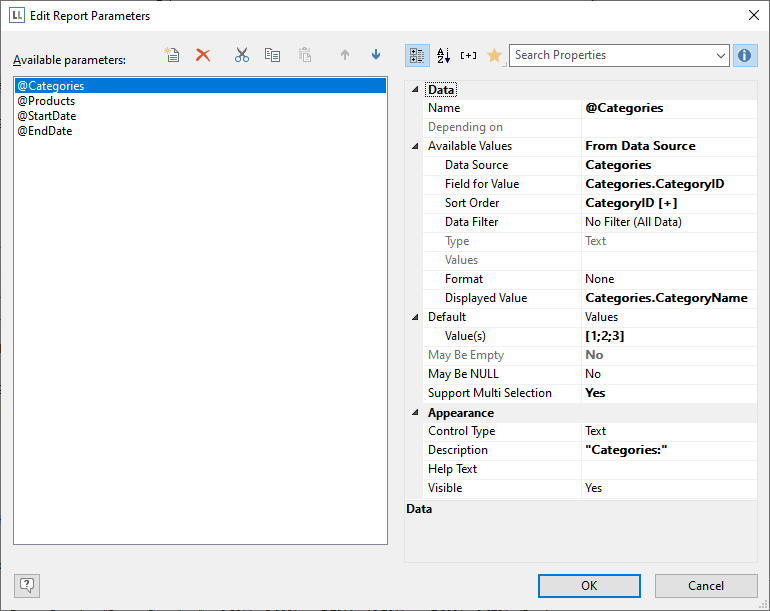

Figure 9.10: List of Report Parameters
4. You can now define yet another parameter — in the example above e.g. a "Products" parameter that is dependent on the selection in "Categories". Select the corresponding parameter via the property "Depending on".
After doing so, for the second parameter "Products", only those values that also match the selected first parameter will be available.

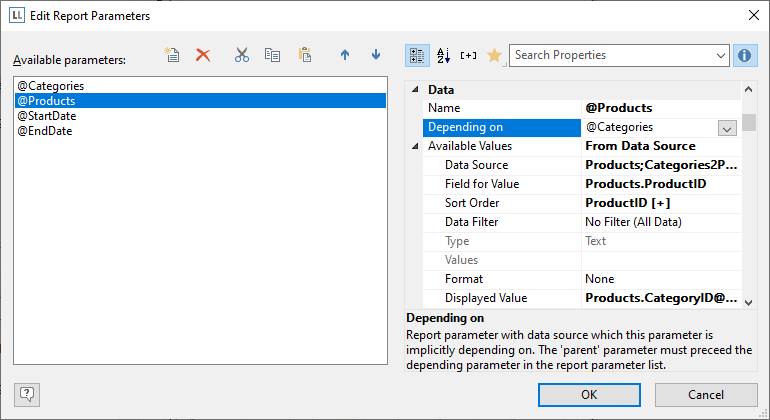

Figure 9.11: Definition of a dependent Report Parameter
5. The parameters are now available in the variable/field list.
Figure 9.12: Parameters in the variable/field list.
6. Under the property "Filter" in the chart object, now define the corresponding formula for the constraints on the data. The parameters are available in the variable/field list.
Pay attention to the notes in section 7.2 Filter.
Figure 9.13: Report Parameters in the Variables-/Field-List and Formula for the Filter
7. When printing to preview, the parameters can then be configured as desired - the report will be filtered according to categories and date:

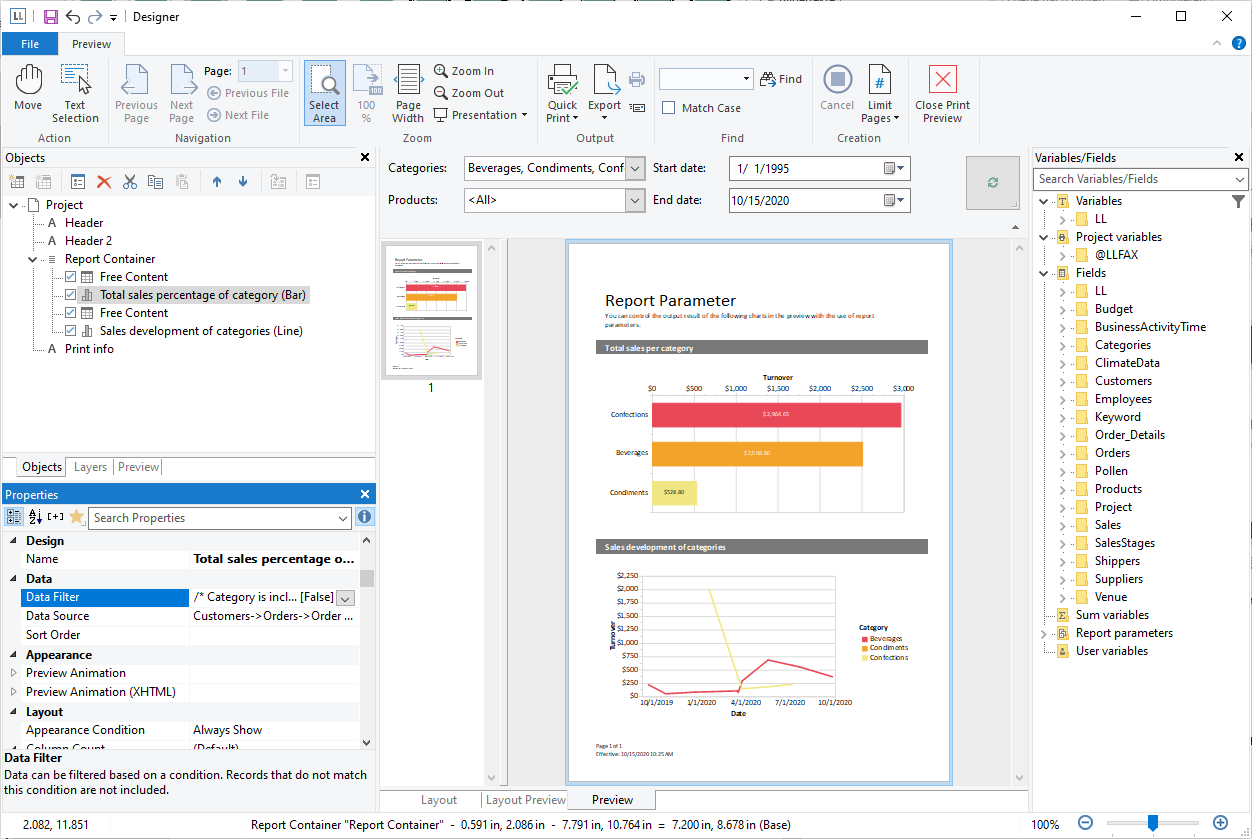

Figure 9.14: Filtered Report
8. If you are not printing to preview, but instead e.g. to a PDF file, the parameter selection will appear as a dialog before printing.

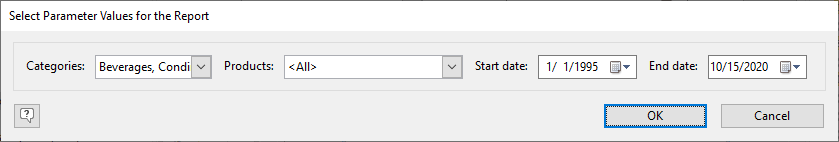

Figure 9.15: Report Parameter Selection in the export
